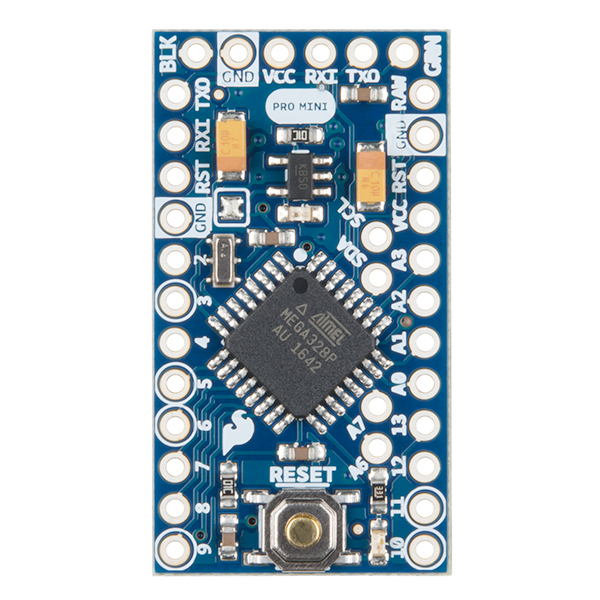

Arduino Pro Mini¶
Aim¶
- Fablicate Arduino Pro Mini compatible board with fab inventry
- Order own PCB of Arduino Pro Mini to PCB maker with Eagle file
Prepation¶
ref.
購入 - HiLetgo® 3個セット pro mini ATMEGA328P 5V 16MHz Arduino PRO miniと互換 [並行輸入品] @1,060/3
Eagle sch
- git sparkfun/Arduino_Pro_Mini_328
-
Eagle fab.lib - FabAcademany-Resources
How To¶
Download Eagle file from git¶
- git sparkfun/Arduino_Pro_Mini_328
- Download ZIP
- unzip
- open “Arduino-Pro-Mini.sch” by Eagle
